| Operation System | Android 4.2.2 |
| Language | Chinese,English…Multi-Language support |
| Chipset | RK3188 28nm Cortex-A9 Quad core. |
| GPU | Embedded 3D GPU Mali 400, High frequency 500Mhz, Support OpenGL ES 1.1/2.0 and OpenVG 1.1. |
| SDRAM | DDR3 2GB |
| Nand Flash | 8GB Nand Flash. |
| Storage Extension | Support MicroSD(TF) ，Up to 32GB |
| Network | 2.4GHZ WiFi 802.11 b/g/n, LAN 10/100M Base-T |
| Bluetooth | Bluetooth v4.0 |
| Power Supply | DC 5V/2A |

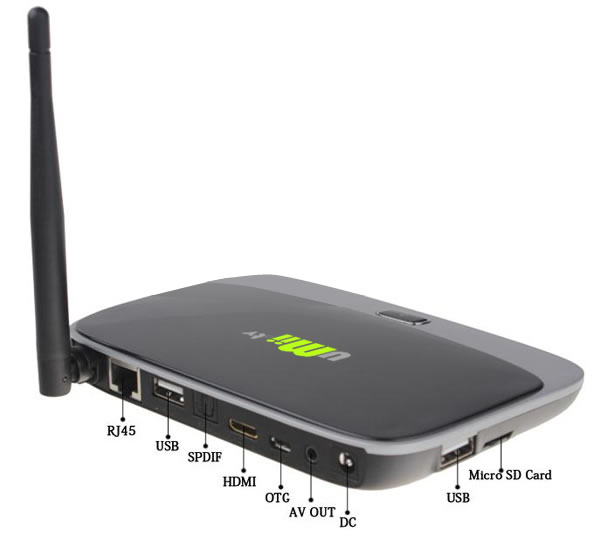

| HDMI Out | 1xHDMI(A type Male),HDMI1.3 Full HD 1920x1080P |
| USB Port | 2XUSB Host |
| Data Output | 1xSPDIF |
| AV Out | 1×3.5mm Headphone Jack |
| Network | 1xRJ45 LAN Port |
| Power Supply | 1xDC Jack(2.1mm) |
| Antenna | External WiFi antenna |

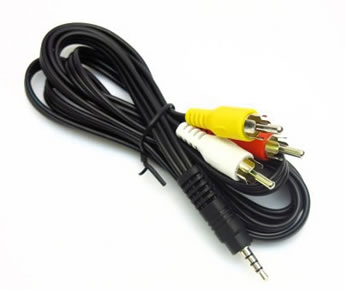

1) Connect one end of the 3 color (white/red/yellow) AV cable to the media player's AV output interface, the other end to TV Set AV input. Connection can be made by colour.
2) Connect the media player to the power, set the "TV Output Settings" to PAL composite video signal, then transferred to the corresponding TV AV video states for startup.
1) Connect HDMI cable into the product interface,the other cable into a TV set.
2) Set the "TV Output Display Settings" to "1080p" and then transferred to the corresponding TV HDMI Component Video status.
In the system user can setup according to their own requirements, such as network connection, language, input methods, Video output resolution, Sound output and check storage space.

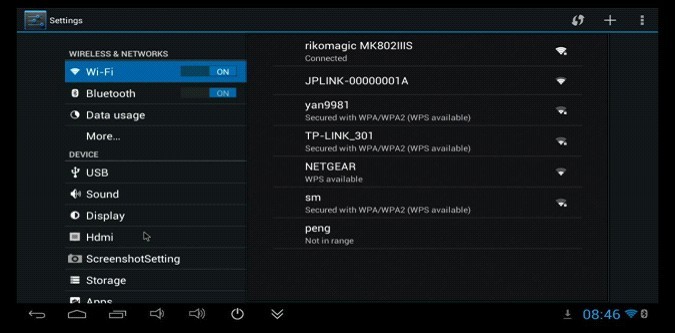

First, Click application on the bottom left side, and Choose Setting.
Second, when opened the WIFI, the TV Box will auto search available wireless router signals within 20 meters, user just choose a router and input correct password to connected network.
